Overview of Common Use (Mobile)

The Main Display area of the app is defined by the Waypoint tab and the Map tab.

Note: The current selected waypoint, using multi select or the draw tool, will be maintained when switching views. In other words, if the draw tool was used in Map View to multi-select waypoints, those waypoints will be selected in Waypoint Table View.

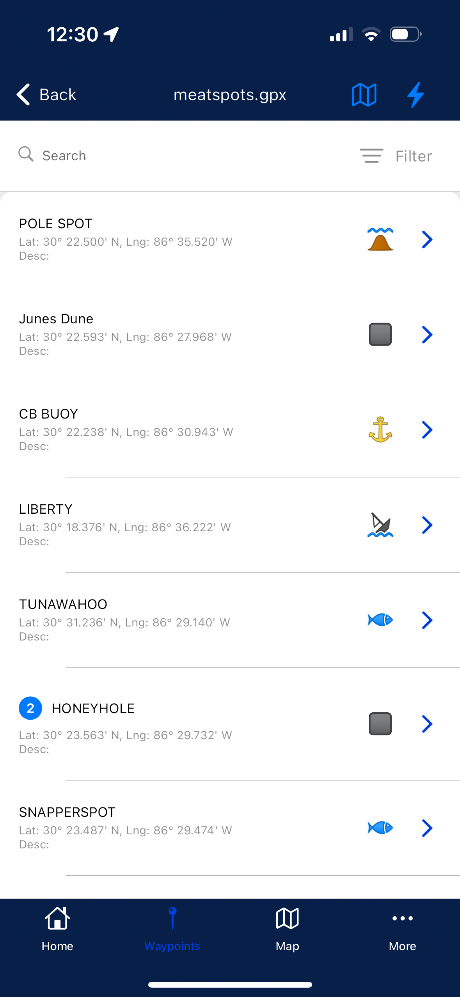

1. Waypoint Tab

This view provides a detailed view of each waypoint list as shown. Waypoints list can be entered from a single tap/click to view and edit the individual waypoints. Waypoints can be adjusted one at a time or the check box can be used to multi-select for an action . (Link to Actions)

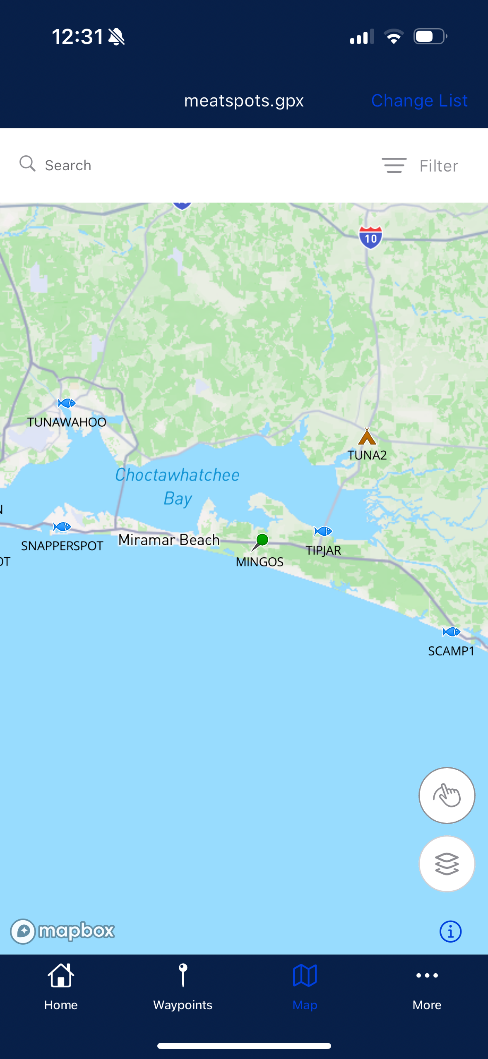

        2. Map View

Displays the selected waypoint list on a map.

1. Change List to select waypoint list
2. Map Options to change Layer (Satellite, Street, Outdoor, Dark, Light Modes)
3. Zoom In/Out
   • Pinch to zoom or use two fingers to tilt

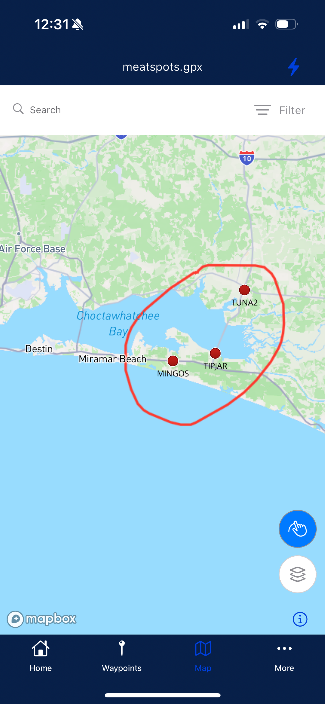

4. Draw Tool
   • Select  to manually draw around a group of waypoints to select them for an Action. The Waypoints will change color to show they are selected. Remember, the selected waypoints will also be selected in Waypoint Tab for action if that view is now selected.
   • With waypoints selected, the Action Tool  will appear.
   •
   • *Link to Action Tool – Bulk Edit Mode
   • NOTE: the selected waypoints will also be selected in the Waypoint List View if that view is now selected. This is especially useful for using the map to Bulk Edit or share waypoints.
   • To remove the drawing, select the draw icon  again.
5. Selecting an Individual Waypoint for edit
   •

Overview of Common Use

Note: The default and most common Lat/Long Format is Degree Decimal Minutes (DDM). Some users may prefer to use Degree Minutes Seconds (DMS) or Decimal Degrees (DD). These can be toggled back and forth in Settings for the best user experience.

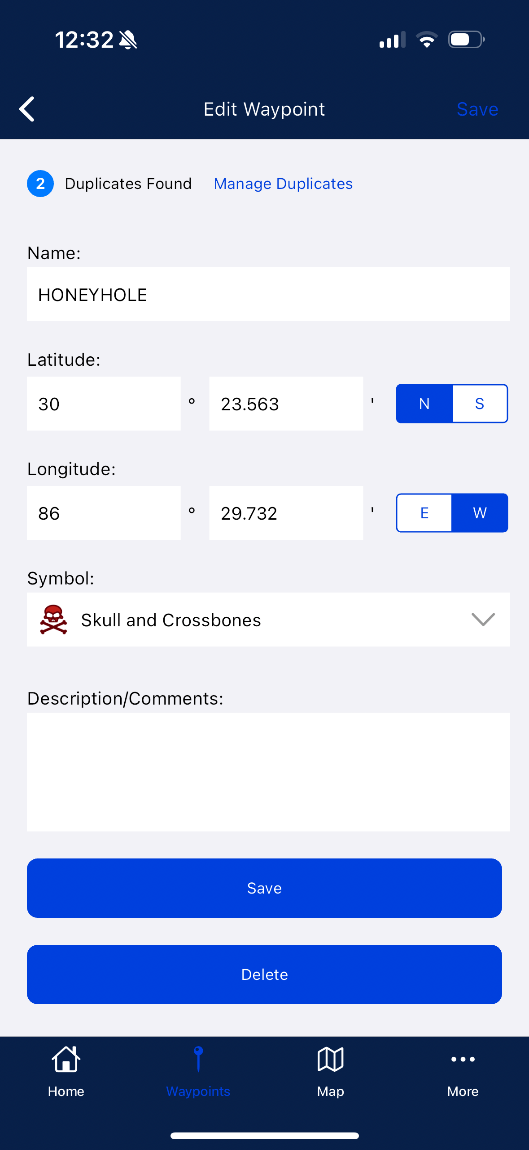

1. Editing a Waypoint
   1. To Edit a Waypoint, Single Click the waypoint to select it from the list.
   2. Available options to change include
      • Latitude
      • Longitude
      • Symbol
      • Description
      • Manage Duplicates (if applicable, and after running Duplicate Finder)
   3. Click Save when Finished

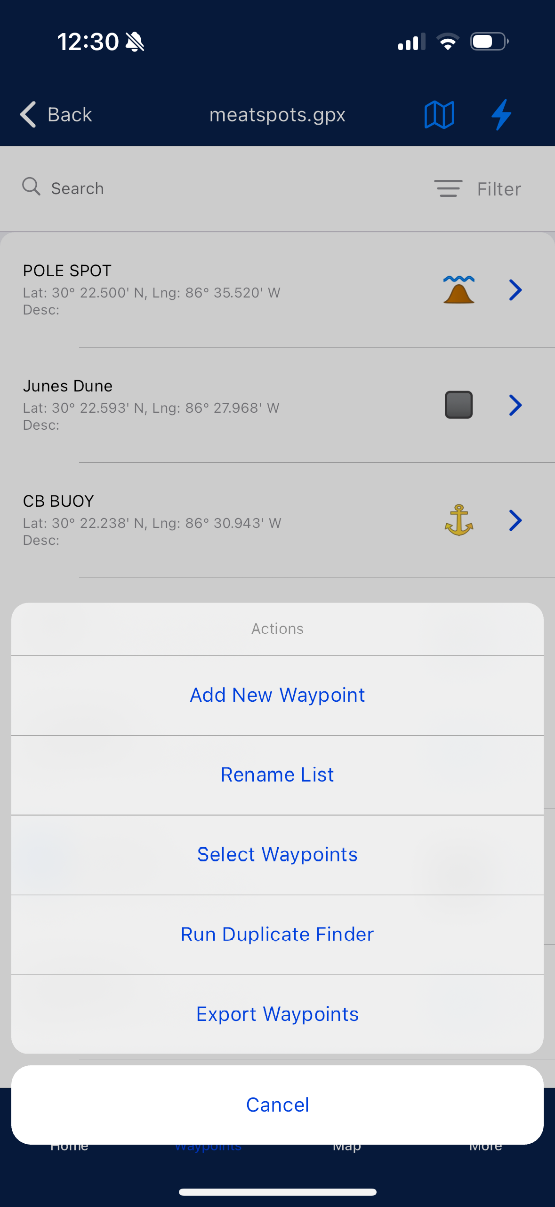

2. Action Tool

The Action Tool contains many functions. Note that the additional functions will be added when waypoints are selected (item 6 below).

1. Add New Waypoint
   • Select to Manually Add a new Waypoint
2. Rename List
3. Select Waypoints
   • Allows for muli-select of waypoints for Bulk Editing
4. Run Duplicate Finder (Link to Duplicate Section)
   • Link
5. Export Waypoints
   • Link

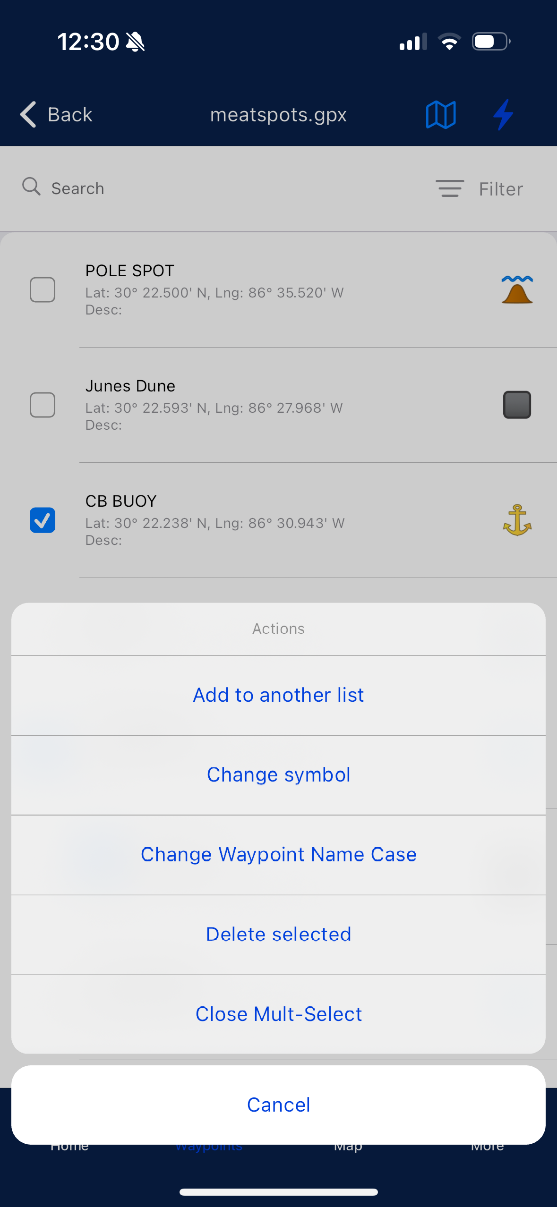

6. When a waypoint is selected, the Action icon provides more options. These options include

• Moving the Selected Waypoints to another List
• Bulk Changing the Symbols

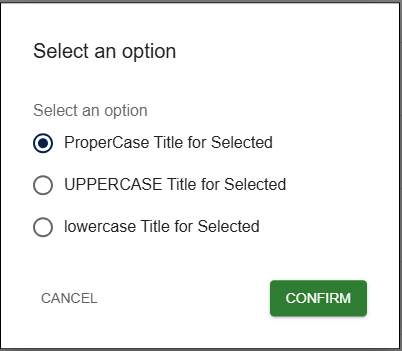

• Changing the title Case
  1.
• Delete Selected
• Close Multi-Select

Filtering

1. Show Duplicates Only
   • After Running the Duplicate Finder (Link), only Duplicates will be displayed.
2. Show Deleted Only
   • Deleted Waypoints can be viewed. This feature is useful when running the auto-delete on the duplicate finder to make sure data was not lost.
3. Filter By Symbol
   • Shows only icons with the identified symbol
4. Clear Filter
